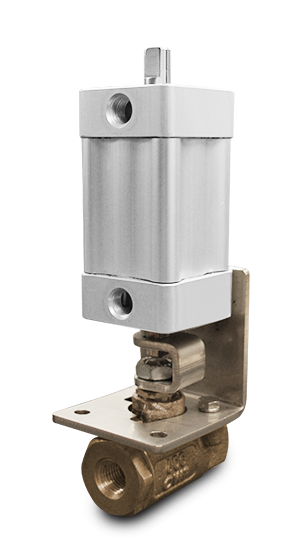

Val-U-Act Series Spring Return Actuator

Val-U-Act Series Spring Return Actuator, spring return actuator, worm drive actuator, spring return operator
Spring Return Actuator Features:
  • Heavy Duty Double Acting Ball Valve Systems
  • Valve sizes from ¼” to 3”
  • 140 in.lbs to 800 in.lbs
  • Spring Return Valve operators
  • Single acting with spring close or open
  • Valve Operator Systems
  • Spring Return operators are formed by bolting a spring return unit to a double acting Val-U-Act operator. The return movement is effected by a clock-type spring which is pretensioned to about half the operator torque. The amount of pretention is large, compared to the rotation and therefore the torque does not vary more than 20% over the rotation.\
  • Spring returns are factory-installed and adjusted. The spring returns have a worm drive adjustment for setting or changing spring pretension. By inserting a socket key into one end of the worm the spring pretension can be very easily increased or decreased to suit operating conditions. To increase pretension, turn the worm clockwise; to decrease, turn counterclockwise.

Unit Materials

Stator/Rotor Seals: Urethane Shaft/Tube
Seals: Buna
Cylinder: Anodized Alum.
EndCaps: Anodized Alum.
Shaft: Stainless Steel
Trim: Mild Steel, Opt’l S.S.
Brackets: Stainless Steel
Couplings: Stainless Steel
Miscellaneous Inlets: 1/8”NPT Filtration Air 25-30 microns
Temperature Range 40°F to 180°F.
For applications below 40°F, a variety of seal options are available based upon cycle rates,temperatures and requency of use.
