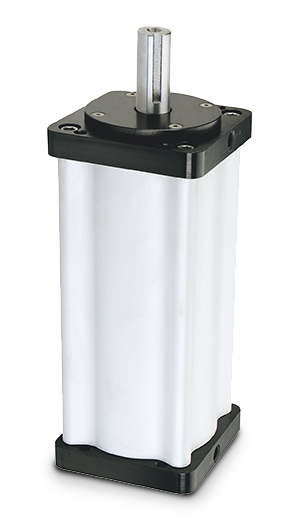

Brute Rotary Vane Actuator

vane actuator, rotary vane actuator, rotary torque actuator, brute series actuators

Vane Actuator Features:

25 vane actuator base models with torque outputs from 400 in.lbs to 5200 in.lbs.
Rotations 90, 110, 180, 270 & 290 degrees.

One moving part providing:

Zero Backlash.
No loss of motion
Smooth Rotation
Precise Repeatability
Continuous full torque throughout the rotation

Patented Urethane seals for:

Vane actuator long cycle life and non-lube service
Actual applications with 25 million cycles and more
100’s of standard options and modifications

Adjustable Stroke Control
Infinite rotational adjustment for the precise rotation required.
Retract or extend the stop screw to either increase or decrease the rotation.
