Inch Stainless Steel Cylinders

Inch Stainless Steel Cylinders

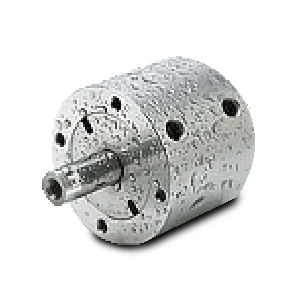

Compact Air CR3 Stainless Steel Series Cylinders are 100% stainless steel and designed for extremely tough and limited space applications. They are ideal for use in harsh environments found in industries such as chemical/petroleum, pharmaceutical, salt-water exposure, nuclear, medical equipment and food processing.

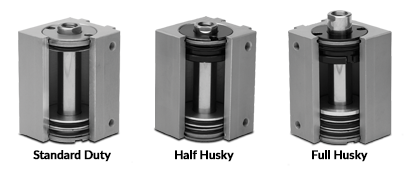

Standard Duty
  • Our most space efficient duty
  • Short rod bearing and thin piston design
  • Available as single or double rod end
Intermediate Duty (Half Husky®)
  • A combination of our standard and heavy duty long rod bearing and thin piston, designed for medium duty service
  • Available as single rod end
Heavy Duty (Full Husky)
  • Longer rod bearing plus longer piston
  • Designed for heavy-duty services
  • Available as single or double rod end
Available in standard inch Bore size(s): 3/4" to 8" Bore

Available in stocked lengths from 3/4" to 3-3/4"

Note: Longer or shorter strokes available – Consult with Compact Automation Products experienced application engineers today

Mounting: Clevis (optional feature); Double-end Mount (optional feature); Flange (optional feature); Face (optional feature); Nose Mount (optional feature); Threaded (optional feature)

Features: Double-End Rod (optional feature); Multi-Position

Body Material: Steel; Stainless Steel
