Ball Slides and Pneumatic Slides

pneumatic slides, pneumatic cylinder slide, compact slide air cylinder

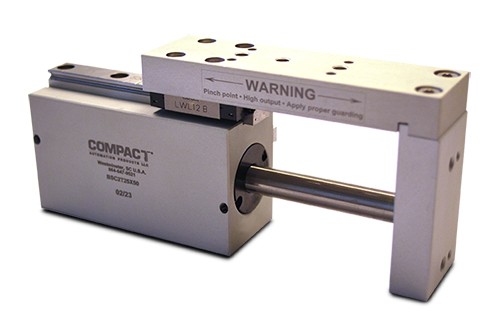

Compact BSC series cylinders are another variation of our versatile Compact air cylinders. All models feature our signature compact space efficiency. We have combined our cylinder with a high load bearing, factory matched recirculation ball slide rail set in two simple, low cost, designs ideal for precision industrial automation.

8mm and 12mm Bore

Cylinders feature our patented snap-cap design: a resilient retainer seal that aids in absorbing minor piston impact

20mm Bore

Cylinders feature our patented stainless steel wire form end cap retainer

Some type of control is required on any pneumatic ball slide cylinder, below are available choices.

8mm and 12mm Bore Cylinders feature our patented Snap-Cap® design: a resilient retainer seal that aids in absorbing minor piston impact.
Flow Controls are strongly recommended for all ball slides. Controlled speed extends life.
20mm, 25mm and 40mm Bore Cylinders feature our patented stainless steel wire form end cap retainer.
Flow Controls are strongly recommended for all ball slides. Controlled speed extends life.
