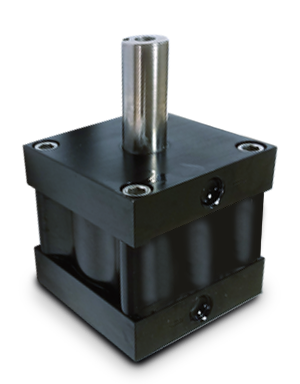

Hydraulic Valve Operator Series (500 & 3000 psi)

Double Acting 1/4 Turn Valve Operator

76 ft. lbs. to 240 ft. lbs.

ITT Vane Actuators provide the highest torque
in the smallest package.

Compared to other rotary devices, vane actuators
have one moving part providing:

ZERO Backlash
No Loss of Motion
Smooth Rotation
Precise Repeatability
Continuous Full Torque Throughout Rotation

Unit Materials Tube/Heads/Rotor: Hard Coat Anodized Aluminum
Shaft: 316 Stainless Steel
Optional Bracket/Coupling: 316 Stainless Steel
Features Ports: SAE-4 (Per J1926-1) Shaft Connection - Keyed/Flatted (KF) or Both Ends Flatted (DF) Mounting Holes - 4x, 5/16”-18 Tapped Holes on Three Sides
Operating Pressure 100 to 500 psi (6.9 to 34 BAR)
Operating Depth 10,000 feet below sea level, (unit must be pressure compensated)
Operating Temperature Range-10°F to 150°F. (-23ºC to +65ºC)
Operating Fluid ISO 22/32 Hydraulic Oil, Water-Glycol Solutions
