Multi-Act Series Multi Position Actuator

Multi Motion Devices, Multi Position Devices, Multi Position Actuator

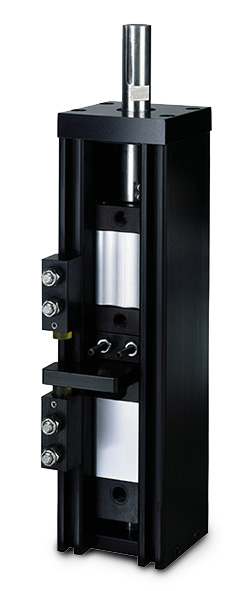

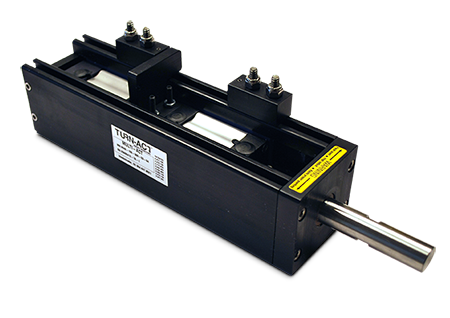

Multi-Act integrated motion actuators have an output shaft which produces both linear and rotary motions. The linear and rotary motions may be operated independently and simultaneously. The Multi-Act series is available in two base sizes.

Multi-Act’s exclusive use of Turn-Act’s patented rotary vane actuators, linear glide system and large bore linear actuators provides smooth, virtually zero backlash motion, a first in multi-motion systems.

Multi-Act is available in two family sizes. The MAO series are compact units for limited space applciations. They are available in three stroke lengths and torques to 50 inch pounds. The MA1 series are heavy duty units available in five stroke lengths and torques up to 600 inch punds.

Multi-Act units are available with optional lienar and rotary switches that are fully position adjustable.

MAO series – Miniature series

Linear: Strokes 1, 2 and 4 inches, Force 100 pounds at 100 psi
Rotary: Rotations 0 deg to 90 deg and 0 deg to 270 deg
Torques 25 to 50 inch pounds at 100 psi

MA-1 Series – Heavy duty series

Linear: Strokes 2,4,6,9 and 12 inches
Force 440 pounds at 100 psi
Rotary: Rotations 0 deg to 90 deg and 0 deg to 270 deg
Torques 150 to 600 inch pounds at 100 psi
