Available in standard inch Bore size(s): 3/4" to 8" (19.05 to 203 mm) Bore Available in stocked lengths from 3/4" to 3-3/4"
Available standard inch bore size(s): 1/2", 3/4" to 3" Bore Available stocked lengths from 3/4" to 3-3/4"

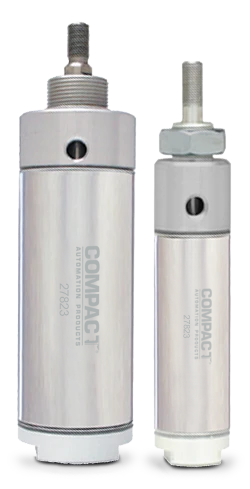

The Compact Round Line Stainless Steel Air Cylinders are manufactured to the highest standards of quality and reliability in a small, durable, and configurable package. Featuring a precision rolled body construction, this line is designed for long life, leak-free, low maintenance performance.
The Compact Composite Cylinder is your complete motion control solution for medical and food grade applications, or wherever lightweight, washdown and corrosion resistance is required.
Compact Air CR3 Stainless Steel Series Cylinders are 100% stainless steel and designed for extremely tough and limited space applications. They are ideal for use in harsh environments found in industries such as chemical/petroleum, pharmaceutical, salt-water exposure, nuclear, medical equipment and food processing.
Compact Automation Products metric air cylinders are designed for limited space and weight applications.

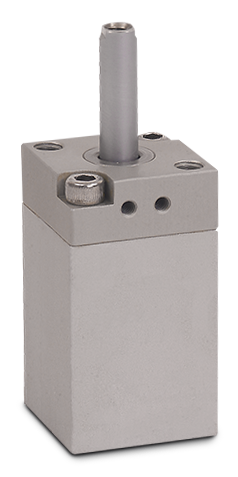

Compact Clean-Act™ cylinders are designed for a clean room evironment.
Compact Shaker systems are pneumatically driven feeder/beltless conveyor systems. These systems are ideal for the stamping industry or other parts transfer and scrap removal applications.
Tie Rods Stainless steel material prevents corrosion Tube High strength hard anodized aluminum Superior wear resistance
Sensors - Compact Automation Products Comtronic sensors are dual LED indicator for power and signal. They feature circuit protection/surge and polarity and come with or without receptacles.

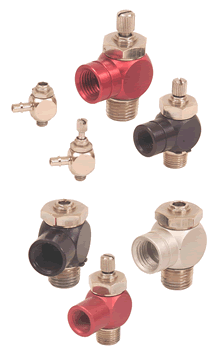

Push to Connect Flow Controls and Threaded Flow Controls - Compact Automation Flow Controls use a unique needle design to minimize turbulence and improve flow controllability. A super fine pitch needle thread provides the finest adjustment available.
Rod Alignment Couplers – Compact Automation Products LLC patented rod alignment couplers, designed to fit any cylinder prevent rod binding, extending the cylinder life.
Compact Air Springs are highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications. With time-tested designs incorporating fabric-reinforced Wingprene™ or natural rubber flex-member construction and corrosion-protected end retainers, Compact Air Springs provide superior quality and performance. As actuators, they can provide either linear or angular motion.
Comp-Act rotary actuator products whether used independently or with other fluid power motion control devices promise long term performance.
Compact's Turn-Act brand Rotary Vane Actuators have only one moving part which produces rotary motion with ZERO Backlash, 100% repeatability and continuous full torque.
Brute Series rotary vane actuators whether used independently or with other fluid power motion devices promise long term performance.
OEM Series rotary vane actuators whether used independently or with other fluid power motion devices promise long term performance.

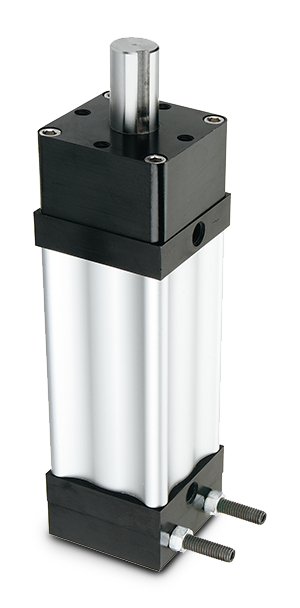

Turn-Dex is a rotary actuator with an internal unidirectional clutch. The output shaft rotates in one direction only and remains at end of stroke while the actuator is reversed.

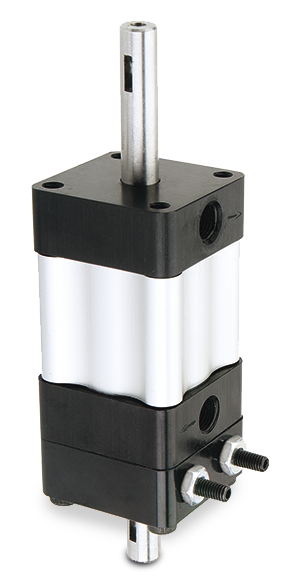

Multi-Act integrated motion actuators have an output shaft which produces both linear and rotary motions. The linear and rotary motions may be operated independently and simultaneously. The Multi-Act series is available in two base sizes.
Val-U-Act actuators are a single acting, heavy duty double acting ball valve system available in a variety of sizes to meet various application paratmeters.

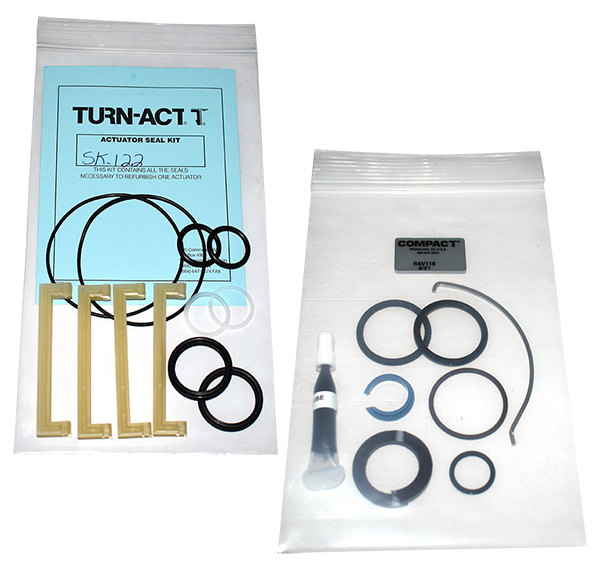

Our repair kits contain everything you need to maintain and repair your Compact Cylinder and Rotary Actuator products.

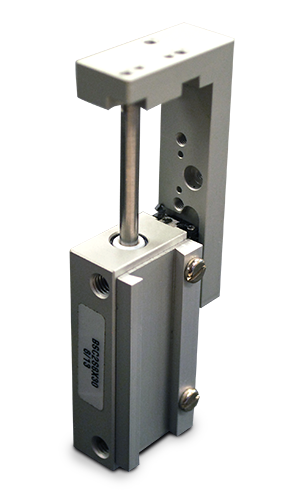

Compact BSC series cylinders are another variation of our versatile Compact air cylinders. All models feature our signature compact space efficiency. We have combined our cylinder with a high load bearing, factory matched recirculation ball slide rail set in two simple, low cost, designs ideal for precision industrial automation.
CD (Short Body): Perfect for tight space and shorter travel where size and weight are critical. CE (Long Body): The longer body spreads the distance between the guide bushings, contributes to the rod rigidity, best for longer strokes and higher load applications.

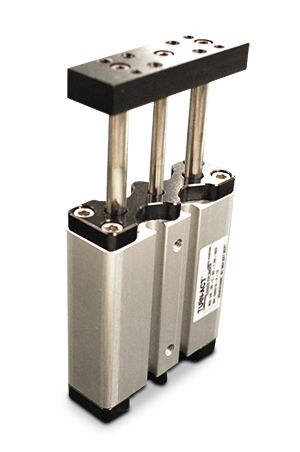

Guided cylinders combine high strength, lightweight extruded bodies and the rigid support of composite or roller ball bearings with enersorb piston to provide an unparalleled guided cylinder product.
Our Linear and Guided Slides feature a slim, compact design that allows for high load capacities and a long service life.

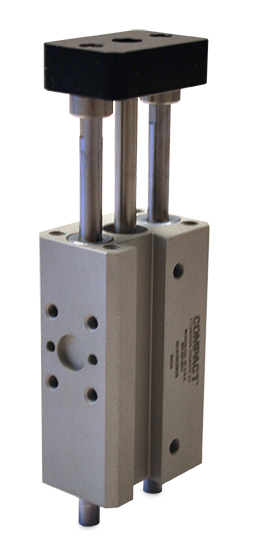

GC2000 series guided cylinders outperform conventional non-rotating cylinders and is designed for short stroke, limited space applications where a cylinder is needed that guides and supports its own load. GC2000 series cylinders are designed for both torsion and direct side load.

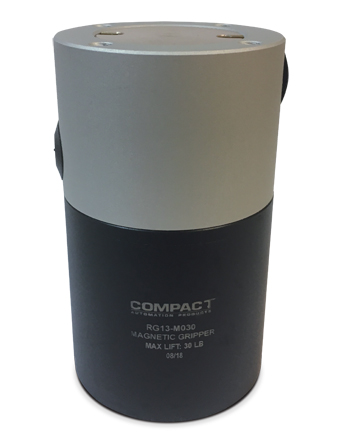

Compact magnetic grippers are great for picking up ferromagnetic materials such as iron or steel in applications where other types of grippers and vacuum cups are currently being utilized.

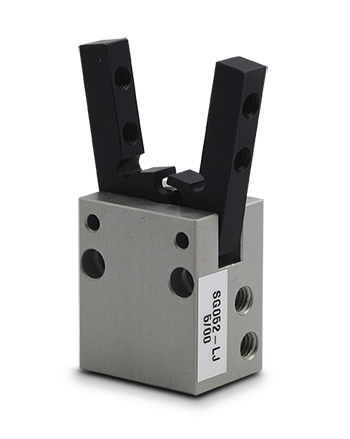

Our angular gripper represents the lowest cost design. The air cylinder is an integral component of the overall gripper length. The piston actuator pushes the cam, or yoke, forward, rocking/pivoting the jaws open.

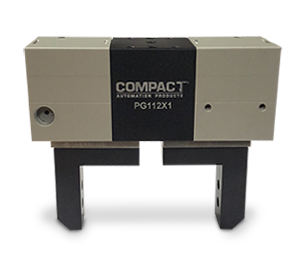

Parallel gripper products from Compact represent a highly versatile and flexible design. The integral pneumatic cylinder pushes the parallel gripper jaws open. The parallel gripper jaws slide along two hardened guide rods providing rigid, long lasting true parallel gripper motion.
CI series Compact Intensifiers are simple generic boosters that utilize a large pneumatic piston to intensify oil pressure with a smaller piston. The Product range includes 24 models. All are designed to be highly space efficient and low weight. The pressure chamber features two large full flow ports for easy filling and bleeding.

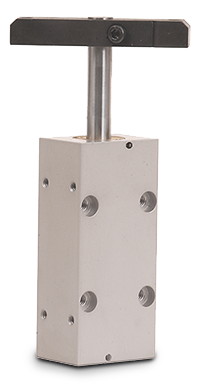

Twist Cylinders are linear motion cylinders with internal cams that provide 90º swing motion. Twist cylinders are ideal swing clamps for automated and semi-automated assembly.
Collet closer are used worldwide in the metalworking industry for their high accuracy and high output gripping of tools and work pieces. Compact Automation Products has chosen 3 popular collet sizes: 1C, 3C and 5C to design our space efficient collet fixtures around.
NIASA N/W/R Series screw jacks are a combination of a screw with a gearbox. There are three types of configurations that can be adapted to different requirements:
NIASA F/A Series linear actuators are electro-mechanica lcylinders in which a round stem moves inside a second tube,of either steel or aluminum.
NIASA FM/AM Series electro-mechanical actuators combine the sleeve and stem system of the F/A Series linear actuators with the gearbox of the screw jacks, thus obtaining the most interesting features of both types of product.
NIASA FHM/AHM Series electro-mechanical actuators have evolved from the FM/AM Series, aimed at specific requirements in the solar energy generation sector (photovoltaic, thermo-solar,etc.). They can also be used in any other kind of application with demanding environmental conditions.
NIASA SH Series screw supports are a simple and economical solution for mounting a screw on a support and fastening it to any part of a machine. The turn of the screw moves its corresponding nut and with this the desired part of the machine moves (carriages, tables, etc.).
NIASA bevel gearboxes are used universally in almost all types of industry. They transfer energy through conical gears, with spiral teeth in optimized geometry. They are manufactured from tempered steel, cut according to Klingelnberg/Gleason standards and overlapped. One of the gears is mounted on a dual-supported bushing, while the other gear is overhanging.
There is an extensive range of accessories available for the different NIASA standard products that enable the equipmet to be configured in accordance with specific requirements.
NIASA linear tables are translating units, applicable to practically any precise positioning problem. In combination with a rotary device a fourth axis for radial positioning can be provided.
NIASA CMH rodless mechanical cylinders can form part of almost any type of machinery, as long as it exercises linear forces or moves one or more axes in a controlled manner. They are used separately, or combined with each other, given the multiple possibilities of combination offered.
The company will display a wide array of highly durable, reliable and eco-friendly solutions from these produc
Welcome to Compact Automation, your go-to hub for advanced rotary vane actuator products, In this write-up, we'll delve into the world of these unique devices, their applications, and how to choose the right one to meet your specific needs.
